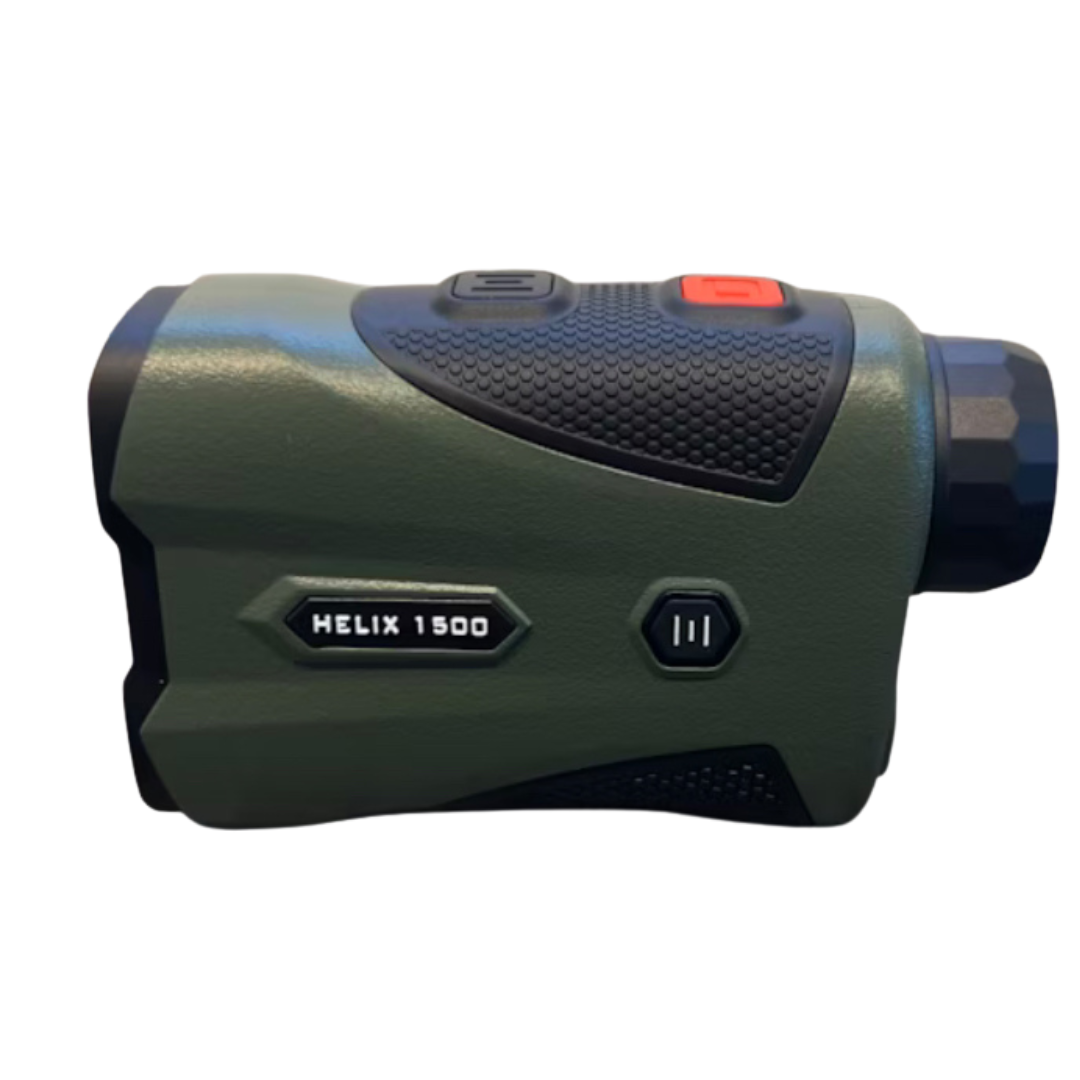

Element Optics Helix 1500 Ballistic Rangefinder

This lightweight, easy-to-use rangefinder can be easily connected via bluetooth to the Element Ballistics app or even to the HYPR-7 rifle scope, providing the perfect firing solution.

With a range of 1500 metres, it has a standard magnification of 6x with a field-of-view of 12.3 metres at a distance of 100 metres.

The objective has a diameter of 22 mm, which provides a decent transmission of light. There is a dual colour T-OLED display, with the green lines indicating the laser is active and the angle and the distance to the object presented in red.

Switch between modes by the touch of a button:

• LOS – Line of Sight: the rangefinder will measure the actual distance to the object.

• HCD – Horizontal Component Distance: the rangefinder measures the horizontal distance to the object.

• BALC- Ballistic Calculator: this mode presents the LOS and a firing solution. It can show that solution in MOA, MRAD, inches or cm.

The mode-button allows you to switch between the First- and Last modes, with First mode measuring the distance to the object closest to you only. Even if you move the laser past that object and it hits something else a little farther away, the rangefinder will still only display the distance to the object closest to you.

The Last mode does the exact opposite, showing the distance to the object furthest from you.

Weighing only 150 grams and with a length of 100 mm it has a weather-resistant housing, with a rough texture on top and on the bottom for extra grip.

Specifications:

Optical Magnification : 6x

Range : 1500m

Accuracy : +-1

Field of View at 91.44m : 11.2

Field of View at 100m : 12.3

Weight : 150g

Extras : Battery / Lens Cloth / Pouch
